Lub tshuab ziab khaub ncaws yog cov khoom siv huv huv rau ziab tes lossis ziab tes hauv chav dej.Nws tau muab faib ua induction tsis siv neeg tshuab ziab khaub ncaws thiab phau ntawv tshuab ziab khaub ncaws.Nws yog tsuas yog siv hauv tsev so, tsev noj mov, chaw tshawb fawb tshawb fawb, tsev kho mob, chaw lom zem rau pej xeem thiab chav dej ntawm txhua tsev neeg.Lub tshuab ziab khaub ncaws tau kov yeej qhov tsis txaus uas lub tshuab ziab khaub ncaws uas twb muaj lawm tsis tuaj yeem tso cua tawm hauv ntau qhov kev qhia, uas yooj yim ua rau cov tawv nqaij kub ntawm tes siab dhau lawm, thiab lub hom phiaj muab lub tshuab ziab khaub ncaws uas muaj cua tshuab hauv ntau qhov kev qhia.Cov cuab yeej qhia huab cua yog muab rau ntawm qhov chaw, thiab cov cuab yeej qhia huab cua yog muab nrog cov cua qhia cov hniav.Cov txheej txheem kev siv hluav taws xob thiab cov cua tsis muaj kev taw qhia tawm ntawm lub tshuab ziab khaub ncaws yog tshwm sim los ntawm kev sib hloov ntawm cov cuab yeej cua qhia lossis lub viav vias ntawm cov cua qhia cov hniav.

Taw qhia

FEEGOO tes tshuab ziab khaub ncaws yog cov khoom siv tu huv thiab khoom siv zoo tshaj plaws.Tom qab ntxuav koj txhais tes, muab koj txhais tes tso rau hauv qhov hluav taws xob cua ntawm lub tshuab ziab khaub ncaws tsis siv neeg, thiab lub tshuab ziab khaub ncaws tsis siv neeg yuav cia li xa tawm cua sov so, uas yuav sai sai dehumidify thiab qhuav koj txhais tes.Thaum nws cia li kaw cua thiab kaw.Nws tuaj yeem ua tau raws li qhov yuav tsum tau ua kom tsis txhob ziab tes nrog phuam thiab tiv thaiv kab mob khaub thuas.Tsis siv neeg induction high-speed tes tshuab ziab khaub ncaws yog ib qho khoom siv huv huv thiab zoo tagnrho rau cov chaw tsim khoom noj khoom haus, uas tuaj yeem ua rau huv, huv, nyab xeeb thiab tsis muaj kuab paug rau tes ziab.Tom qab ntxuav koj txhais tes, muab koj ob txhais tes tso rau hauv qhov hluav taws xob cua ntawm qhov tsis siv neeg induction high-speed tes tshuab ziab khaub ncaws, thiab lub tshuab ziab khaub ncaws tsis siv neeg yuav cia li xa tawm cua sov kom ceev ceev kom qhuav koj txhais tes.Kev nyiam huv ntawm tes thiab tiv thaiv kab mob sib kis.

txoj cai ua haujlwm

Lub hauv paus ntsiab lus ntawm kev ua haujlwm ntawm lub tshuab ziab khaub ncaws yog feem ntau tias lub sensor pom lub teeb liab (tes), uas yog tswj kom qhib lub cua sov Circuit Court relay thiab lub tshuab hluav taws xob relay, thiab pib cua sov thiab tshuab.Thaum lub teeb liab pom los ntawm lub sensor ploj mus, qhov kev sib cuag raug tso tawm, lub tshuab cua sov thiab lub tshuab hluav taws xob relay raug txiav, thiab cua sov thiab tshuab yog nres.

Cua sov system

Txawm hais tias lub tshuab cua sov muaj cov khoom siv cua sov, PTC, hluav taws xob cua sov hlau.

1. Tsis muaj cov khoom siv cua sov, raws li lub npe qhia, tsis muaj cov khoom siv cua sov

Nws yog qhov tsim nyog rau cov chaw uas yuav tsum muaj qhov kub thiab txias thiab qhov chaw uas siv lub tshuab ziab khaub ncaws ntau zaus.

Piv txwv li: ntim rhiav rau cov zaub ceev ceev thiab khov dumplings

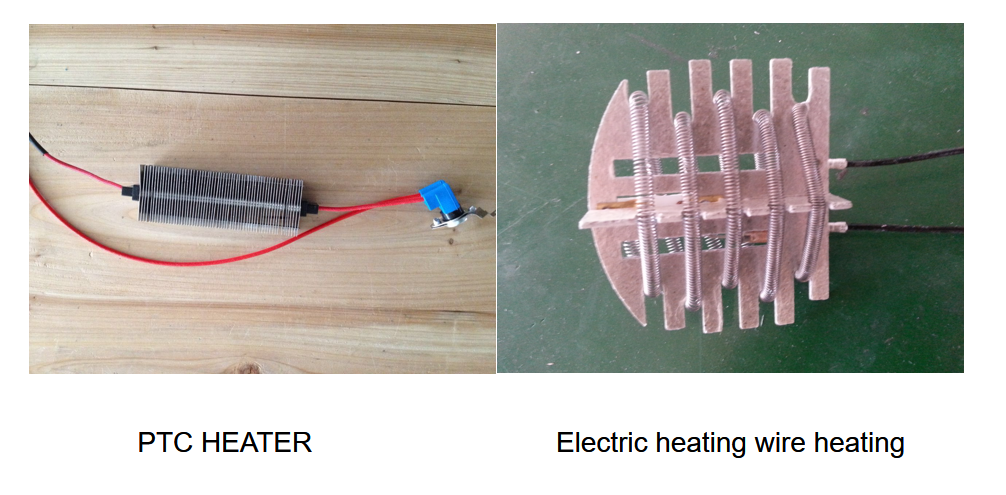

2. PTC cua sov

PTC thermistor cua sov, vim tias nrog kev hloov pauv ntawm qhov ntsuas kub, lub zog ntawm PTC cua sov kuj hloov.Thaum lub caij ntuj no, lub zog cua sov ntawm PTC nce, thiab qhov kub ntawm huab cua sov los ntawm lub tshuab ziab khaub ncaws kuj nce, txuag lub zog thiab kev tiv thaiv ib puag ncig.

PTC yog tus cwj pwm los ntawm qhov kub thiab txias tsis tu ncua, tab sis nws kuj muaj qee qhov tsis zoo, uas yog, qhov kub thiab txias ntawm cov cua sov xaim tsis nce nrawm.

3. Hluav taws xob cua sov hlau cua sov

Cov tsoos cua sov xaim cua sov, cua kub kub nce sai, tab sis cua kub stability tsis zoo, cua kub yog ib qho yooj yim rau siab, thiab tus nrog sib ntaus yuav hlawv.

Lub tshuab ziab khaub ncaws siab ceev tau txais cov txheej txheem cua sov hlau ntxiv rau CPU thiab ntsuas kub ntsuas ntsuas kom ua tiav cov txiaj ntsig ceev thiab qhov cua kub tsis tu ncua.Txawm tias thaum cua ceev siab li 100 m / s, lub tshuab ziab khaub ncaws tuaj yeem tshuab cua sov tas li.

Feem ntau, lub suab nrov ntawm lub tshuab ziab khaub ncaws feem ntau raws li cua sov cua sov yog qhov loj, thaum lub suab nrov ntawm tes tshuab ziab khaub ncaws nrog cua kub feem ntau raws li cua sov yog me me.Cov lag luam tuaj yeem xaiv raws li lawv cov xwm txheej tiag.

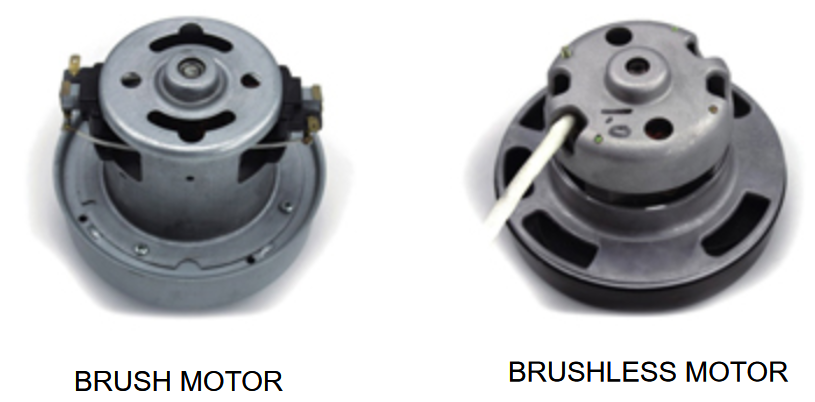

Lub cev muaj zog

Lub cev muaj zog yog ib qho ntawm cov khoom tseem ceeb ntawm kev siv hluav taws xob tsis siv neeg siab ceev tshuab ziab khaub ncaws, nyob rau hauv daim ntawv ntawm capacitor asynchronous motors, shaded-ncej motors, series-excited motors, DC motors, thiab cov hlau nplaum ruaj khov motors.Tes tshuab ziab khaub ncaws uas tau tsav los ntawm capacitor asynchronous motors, ntxoov ntxoo-ncej motors, thiab DC motors muaj qhov zoo ntawm lub suab nrov, thaum tsis siv neeg induction high-speed tes dryers uas tau tsav los ntawm series excitation motors thiab cov hlau nplaum ruaj khov motors muaj qhov zoo ntawm cov huab cua loj.

Qhuav tes hom

Cua sov raws li kev kub ceev thiab cua kom qhuav

Lub tshuab cua sov-raws li lub tshuab ziab khaub ncaws feem ntau muaj lub zog cua sov loj, siab dua 1000W, thaum lub zog lub cev muaj zog me me, tsuas yog tsawg dua 200W., tshem tawm cov dej ntawm tes, txoj kev no yog qhov qeeb ntawm tes qhuav, feem ntau ntau tshaj 30 vib nas this, nws qhov zoo dua yog lub suab nrov me me, yog li nws nyiam los ntawm cov tsev ua haujlwm thiab lwm qhov chaw uas xav tau kev nyob ntsiag to.

Lub tshuab ziab khaub ncaws kub ceev yog tus cwj pwm los ntawm cov cua kub ceev heev, uas tuaj yeem ncav cuag qhov siab tshaj plaws ntawm 130 m / s lossis ntau dua, qhov ceev ntawm tes ziab hauv 10 vib nas this, thiab lub zog cua sov kuj qis, tsuas yog ob peb puas. watts, thiab nws cov cua sov ua haujlwm tsuas yog ua kom muaj kev nplij siab.degree, yeej tsis cuam tshuam qhov ceev ntawm tes qhuav.Vim nws txoj kev ziab sai sai, nws tau txais tos los ntawm cov chaw tsim khoom noj khoom haus, cov chaw tsim tshuaj, cov khoom siv hluav taws xob, cov tsev ua haujlwm high-end (zoo suab rwb thaiv tsev) thiab lwm qhov chaw.Nws kuj tau pom zoo los ntawm cov kws tshawb fawb ib puag ncig vim tias nws qhov kev siv hluav taws xob tsawg thiab tib lub sijhawm kom qhuav sai li daim ntawv tso quav tso quav..

Feem ntau malfunctions

Fault phenomenon 1: Muab koj txhais tes tso rau hauv lub qhov hluav taws xob cua kub, tsis muaj cua kub cua tshuab tawm, tsuas yog cua txias cua tshuab tawm.

Kev tshuaj xyuas thiab kev saib xyuas: Muaj cua txias cua tshuab tawm, qhia tias lub tshuab hluav taws xob lub tshuab hluav taws xob muaj lub zog thiab ua haujlwm, thiab kev kuaj xyuas infrared thiab tswj Circuit Court yog qhov qub.Tsuas muaj cua txias xwb, qhia tias lub tshuab cua sov yog qhib Circuit Court lossis cov xov hlau xoob.Tom qab kev soj ntsuam, lub rhaub hluav taws xob yog xoob.Tom qab rov txuas dua, muaj cua kub cua tshuab tawm, thiab qhov txhaum raug tshem tawm.

Fault phenomenon 2: Tom qab lub hwj chim qhib, tes tsis tau muab tso rau ntawm lub qhov hluav taws xob kub.Cov cua kub tshuab tawm ntawm kev tswj.

Kev tshuaj xyuas thiab kev saib xyuas: Tom qab kev tshawb nrhiav, tsis muaj qhov tawg ntawm thyristor, thiab nws xav tias lub raj photosensitive hauv lub photocoupler ③ thiab ④ yog leaked thiab tawg.Tom qab hloov lub optocoupler, kev ua haujlwm rov qab mus rau qhov qub, thiab qhov ua txhaum raug tshem tawm.

Fault phenomenon 3: Muab koj txhais tes tso rau hauv qhov hluav taws xob cua kub, tab sis tsis muaj cua kub cua tshuab tawm.

Kev soj ntsuam thiab kev saib xyuas: xyuas tias lub kiv cua thiab lub rhaub yog qhov qub, xyuas tias lub rooj vag ntawm lub thyristor tsis muaj qhov cuam tshuam qhov hluav taws xob, thiab xyuas tias c-ncej ntawm cov tswj triode VI muaj lub teeb liab yoj tawm., ④ Kev tiv thaiv rau pem hauv ntej thiab thim rov qab ntawm cov pins yog qhov tsis muaj kawg.Feem ntau, qhov kev tiv thaiv pem hauv ntej yuav tsum yog ob peb m, thiab qhov rov qab ua haujlwm yuav tsum yog qhov kawg.Nws raug txiav txim tias lub raj sab hauv photosensitive yog qhib Circuit Court, uas ua rau lub rooj vag ntawm thyristor tsis tau txais qhov cuam tshuam voltage.Qhib tsis tau.Tom qab hloov lub optocoupler, qhov teeb meem yog daws.

Yuav Qhia

Thaum muas lub tshuab ziab khaub ncaws tsis siv neeg induction siab ceev, tsis txhob saib tus nqi ntawm lub tshuab ziab khaub ncaws nws tus kheej.Txawm hais tias qee lub tshuab ziab khaub ncaws yog pheej yig heev, lawv zoo li tsov thaum siv hluav taws xob, thiab nws tsis yooj yim rau kev tswj lub zog noj;los yog qhov kev ua tau zoo tsis ruaj khov thiab tsis yooj yim rau siv.Muaj lub sijhawm lossis lub zog los npau taws tuaj yeem yuav ib qho zoo.Sim ua kev yuav khoom tom qab sim.Ntau lub tshuab ziab khaub ncaws me me siv cov tshuab ziab khaub ncaws ua los ntawm cov ntaub ntawv tsis zoo, thiab cov casing yuav deform tom qab siv tas mus li ntev, ua rau muaj kev phom sij loj heev.Cov tuam txhab tsim khoom noj khoom haus yuav tsum txiav txim siab seb hom tshuab ziab khaub ncaws yuav ua li cas raws li lawv tus kheej xav tau thiab ib puag ncig yam tseem ceeb;vim muaj coob tus neeg nyob rau hauv lub chaw ua zaub mov, nws tsis raug tso cai tos nyob rau hauv kab kom qhuav tes ua ntej nkag mus rau hauv lub rhiav huv si, yog li high-speed tes dryers yog qhov zoo tshaj plaws xaiv..

1. Plhaub: Cov khoom siv plhaub tsis tsuas yog txiav txim siab qhov zoo li ntawm lub tshuab ziab khaub ncaws, tab sis cov khoom tsis tsim nyog yuav ua rau muaj hluav taws kub.Lub plhaub zoo ntawm lub tshuab ziab khaub ncaws feem ntau yog ua los ntawm stainless hlau, stainless hlau xim, thiab engineering yas (ABS).

Nws raug pom zoo rau kev lag luam khoom noj kom xaiv cov xim ntuj ntawm 304 stainless hlau, lossis lub tshuab ziab khaub ncaws ntawm cov xim ntuj ntawm ABS engineering yas.

2. Qhov hnyav: Yog tias nws yuav tsum tau xav txog qhov chaw teeb tsa thiab seb cov khoom puas muaj peev xwm txaus los nqa qhov hnyav ntawm lub tshuab ziab khaub ncaws tsis siv neeg, piv txwv li, qhov hnyav ntawm cov cement cib phab ntsa feem ntau tsis tuaj yeem txiav txim siab, tab sis yog tias nws yog xim hlau phaj, gypsum board thiab lwm yam ntaub ntawv, lub load-bearing yuav tsum tau txiav txim siab rau cov teeb meem muaj peev xwm, xim hlau phaj feem ntau yuav tsum tau ua raws li cov kev xav ntawm xim hlau phaj manufacturers, los yog tes tshuab ziab khaub ncaws manufacturers muab cov ntaub ntawv xeem rau siv.

3. Xim: Cov xim ntawm lub tshuab ziab khaub ncaws yog tus nplua nuj.Feem ntau dawb thiab stainless hlau yog cov kev xaiv zoo tshaj plaws rau cov khoom noj khoom haus.Yog hais tias ib puag ncig yuav tsum tau xav txog, stainless hlau ci xim kuj yog ib qho kev xaiv zoo.

4. Pib txoj cai: phau ntawv hloov lub sij hawm, infrared induction, lub teeb thaiv induction hom.Ob qhov tom kawg yog txoj kev tsis sib cuag induction.Nws raug pom zoo tias cov chaw tsim khoom noj khoom haus siv lub tshuab ziab khaub ncaws nrog ob txoj kev ua kom tom kawg, uas tuaj yeem tiv thaiv kev sib kis tau zoo.

5. Txoj kev teeb tsa: kev teeb tsa bracket, kev teeb tsa phab ntsa, thiab tuaj yeem siv ncaj qha rau ntawm lub desktop

a) Muaj ob txoj hauv kev ntawm kev teeb tsa bracket thiab phab ntsa-mounted

Feem ntau txoj kev teeb tsa bracket yog qhov kev xaiv thib ob thaum lub phab ntsa tsis tuaj yeem ua tau raws li cov txheej txheem installation, thiab lwm yam yog siv raws li qhov tshwj xeeb thiab nruj yuav tsum tau ua kom huv si ntawm phab ntsa.Lub bracket installation yog hloov tau thiab yooj yim rau siv.

b) Feem ntau, nws raug nquahu kom nruab rau ntawm phab ntsa, uas ruaj khov thiab ruaj khov.

c) Lub tshuab ziab khaub ncaws muab tso ncaj qha rau ntawm lub desktop muaj cov yam ntxwv zoo li no, nws yooj yim los tswj thaum muab tso rau ntawm lub desktop, thiab nws tuaj yeem muab tso rau hauv qhov chaw uas nws siv (DH2630T, HS-8515C thiab lwm lub tshuab ziab khaub ncaws siv tau. ntawm no)

6. Ua haujlwm suab nrov: qhov me dua qhov zoo dua nyob rau hauv cov xwm txheej uas qhov ziab nrawm tuaj yeem txaus siab.

7. Lub zog ua haujlwm: qhov qis dua qhov zoo dua, tsuav yog qhov ziab kom qhuav thiab kev nplij siab.

8. Lub sij hawm ziab ntawm tes: qhov luv dua qhov zoo dua, zoo dua li ntawm 10 vib nas this (qhov tseem ceeb tib lub sijhawm siv daim ntawv phuam).

9. Standby tam sim no: qhov me dua qhov zoo dua.

10. Cua kub: Feem ntau nws yog qhov tsim nyog xaiv lub tshuab ziab khaub ncaws nrog cua kub ntawm 35 degrees Celsius thiab 45 degrees Celsius, uas yuav tsis nkim hluav taws xob thiab yuav tsis xis nyob.

Cov kev ceev faj

Thaum yuav lub tshuab ziab khaub ncaws, cov neeg siv khoom yuav tsum txiav txim siab seb lub tshuab ziab khaub ncaws twg yuav los ntawm lawv cov kev xav tau thiab ib puag ncig.PTC hom tshuab ziab khaub ncaws yog txawv ntawm cov cua sov hlau hom tes tshuab ziab khaub ncaws.Cov neeg siv khoom kuj tuaj yeem xaiv lub tshuab ziab khaub ncaws cua uas siv cua los ua lub ntsiab cua sov ntxiv los ntawm cov cua sov, lossis lub tshuab ziab khaub ncaws kub uas siv cua sov raws li lawv tus kheej xav tau.Thaum xaiv lub tshuab ziab khaub ncaws electromagnetic induction, nws yuav tsum tau muab sau tseg tias hom tshuab ziab khaub ncaws no yooj yim cuam tshuam los ntawm ib puag ncig thiab cov khoom.Thaum xaiv lub tshuab ziab khaub ncaws infrared-sensing tes, nws yuav tsum tau muab sau tseg tias infrared-sensing tes tshuab ziab khaub ncaws kuj raug rau lub teeb cuam tshuam.Thaum muas lub tshuab ziab khaub ncaws, koj yuav tsum tau them sai sai rau hom lub cev uas lub tshuab ziab khaub ncaws siv.Muaj ntau hom motors siv nyob rau hauv tes tshuab ziab khaub ncaws, xws li capacitor asynchronous motors, shaded-ncej motors, series-excited motors, DC motors, thiab cov hlau nplaum ruaj khov motors.Tes tshuab ziab khaub ncaws uas tau tsav los ntawm capacitive asynchronous motors, ntxoov ntxoo-ncej motors, thiab DC motors muaj qhov zoo ntawm lub suab qis, thaum lub tshuab ziab khaub ncaws uas tau tsav los ntawm series motors thiab cov hlau nplaum ruaj khov motors muaj qhov zoo ntawm cov huab cua loj.Tam sim no qhov tseeb brushless DC motors ua ke Nrog cov yam ntxwv saum toj no, tsis tshua muaj suab nrov thiab huab cua loj, nws tau dhau los ua qhov kev xaiv zoo tshaj plaws rau cov tshuab ziab khaub ncaws.

1. Lub tshuab ziab khaub ncaws nrog lub tshuab ziab khaub ncaws ceev ceev, kev tiv thaiv ib puag ncig thiab kev txuag hluav taws xob yog lub tshuab ziab khaub ncaws cua, cua sov-pab tes tshuab.Tus yam ntxwv ntawm lub tshuab ziab khaub ncaws no yog tias cua ceev yog siab, thiab cov dej ntawm ob txhais tes tau nrawm nrawm, thiab cov cua sov ua haujlwm tsuas yog tswj kev nplij siab ntawm tes.Feem ntau, cua kub yog nyob nruab nrab ntawm 35-40 degrees.Nws dries tes sai sai yam tsis tau hlawv.

Thib ob, qhov tseem ceeb ntawm lub tshuab ziab khaub ncaws:

1. Cov khoom siv plhaub thiab lub plhaub tsis yog tsuas yog txiav txim siab qhov tsos ntawm lub tshuab ziab khaub ncaws, tab sis cov khoom siv tsis tsim nyog yuav ua rau muaj hluav taws kub.Lub tshuab ziab khaub ncaws zoo dua feem ntau yog siv ABS nplaim hluav taws kub nyhiab, cov xim pleev xim hlau, thiab cov yas engineering.

2. Qhov hnyav, feem ntau yog los txiav txim siab seb qhov chaw teeb tsa thiab cov khoom puas muaj peev xwm txaus los dais qhov hnyav ntawm lub tshuab ziab khaub ncaws.Piv txwv li, cov cement cib phab ntsa feem ntau tsis tas yuav xav txog qhov teeb meem ntawm qhov hnyav, tsuav yog txoj kev teeb tsa tsim nyog, qhov no tsis yog teeb meem, tab sis yog tias nws yog xim xim cov ntaub ntawv xws li steel phaj yuav tsum xav txog cov khoom siv thauj khoom. muaj peev xwm, tab sis qee cov tuam ntxhab ntawm cov tshuab ziab khaub ncaws muab cov hlua khi los daws cov teeb meem zoo li no.

3. Xim, xim yog qhov tseem ceeb ntawm tus kheej nyiam thiab qhov sib txuam ntawm tag nrho ib puag ncig, thiab cov chaw tsim khoom noj khoom haus, chaw tsim tshuaj, thiab lwm yam yuav tsum sim xaiv cov tshuab ziab khaub ncaws nrog cov xim qub, vim tias cov xim pleev xim rau cov tshuab ziab khaub ncaws tuaj yeem volatilize, uas yuav cuam tshuam rau zaub mov lossis tshuaj.kev ruaj ntseg.

4. Txoj kev pib feem ntau yog phau ntawv thiab infrared induction.Txoj kev pib tshiab yog hom photoelectric, uas yog tus cwj pwm los ntawm kev pib nrawm nrawm thiab tsis yooj yim cuam tshuam los ntawm ib puag ncig.Piv txwv li, lub teeb muaj zog yuav ua rau lub tshuab ziab khaub ncaws infrared kom tig los yog pib ntawm nws tus kheej.Nws pib los ntawm kev thaiv tus nqi ntawm lub teeb tuaj, yog li tiv thaiv qhov teeb meem ntawm infrared tes tshuab ziab khaub ncaws, thiab tseem tsis kov lub tshuab ziab khaub ncaws nrog txhais tes, yog li tiv thaiv kev kis kab mob.

5. Induction txoj hauj lwm, koj tuaj yeem xaiv raws li koj xav tau

6. Txoj kev ua haujlwm, dai ntawm phab ntsa lossis ntawm lub bracket, xaiv raws li koj tus kheej xav tau, nws raug nquahu kom siv hom bracket thaum koj tsiv mus ntau zaus.

7. Ua haujlwm suab nrov, feem ntau yog qhov me dua qhov zoo

8. Tes ziab lub sij hawm, qhov luv dua qhov zoo

9. Standby tam sim no, qhov me dua qhov zoo dua

10. Cov huab cua kub nyob ntawm koj tus kheej xav tau thiab hom tshuab ziab khaub ncaws koj xaiv.Feem ntau, nws raug nquahu kom xaiv ib qho uas tsis hlawv rau lub sijhawm ntev.

Scope ntawm daim ntawv thov

Nws yog qhov tsim nyog rau lub hnub qub tsev so, tsev so, tsev so, pej xeem chaw, tsev kho mob, chaw tsim tshuaj, chaw tsim khoom noj, tshav dav hlau, chaw nres tsheb ciav hlau, chaw ua haujlwm, tsev, thiab lwm yam. Nws yog qhov kev xaiv zoo tshaj plaws rau koj mus nrhiav lub neej zoo nkauj thiab ntxim nyiam!
